Slot Lock Systems

Slot Lock Nozzles

Just like the open FDU hot runner nozzle, the Slot Lock version is available in 3 different sizes:

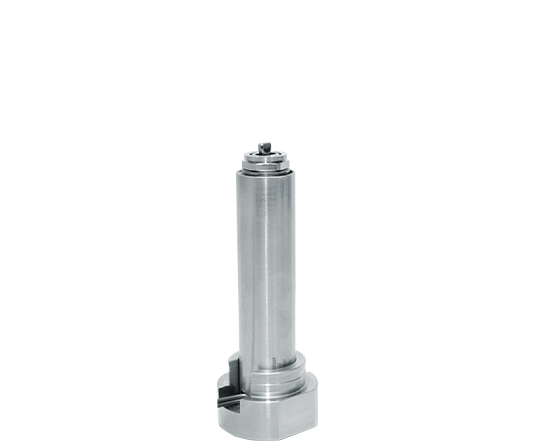

FDU Mini

Slot Lock Nozzle
FDU SLS Mini Düse

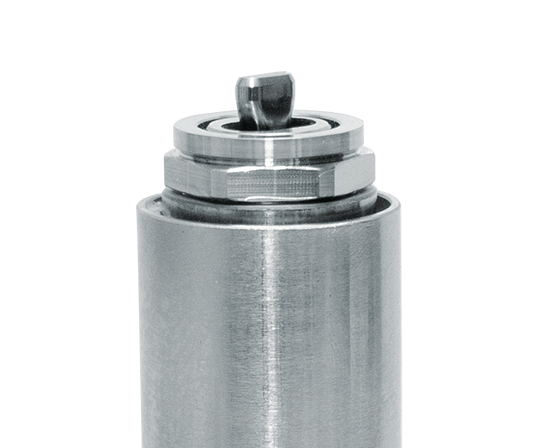

FDU SLS Mini Düse - Detail Schwert

FDU Mini

Slot Lock Nozzle

Nozzle lengths:
80, 100, 120 mm
(Development of a stepless version as required)



Melt channel SLS:
7 mm



Cross-sectional area at outlet SLS:
12 mm2



Shot capacities SLS:
3-70 cm3/sec

FDU Midi

Slot Lock Nozzle
FDU SLS Midi Düse
FDU SLS Midi Düse - Detail Schwert

FDU Midi

Slot Lock Nozzle

Nozzle lengths:
120, 160 mm
(110 - 320 mm stepless in planning)



Melt channel SLS:
16 mm

Cross-sectional area at outlet SLS:
42 mm2



Shot capacities SLS:
50-750 cm3/sec

FDU Maxi

Slot Lock Nozzle
FDU SLS Maxi Düse
FDU SLS Maxi Düse - Detail Schwert

FDU Maxi

Slot Lock Nozzle

Nozzle lengths:
110 - 550 mm (stepless)



Melt channel SLS:
20-24 mm

Cross-sectional area at outlet SLS:
100 mm2



Shot capacities SLS:
300-1.700 cm3/sec

prev icon
prev icon

The FDU SLS is characterised by its efficiency, process reliability and consistent injection quality over a long period of time. The slot lock version is particularly suitable if you process plastics with fillers, glass fibre, long glass fibre or glass beads in your production. The moulded parts produced do not have to be reworked due to the undefined injection point and have a constant gate quality with a large outlet cross-section at the same time. In addition, the blade can be precisely adjusted via hydraulic actuation units.

Just like the open FDU nozzle, the slot lock version is available in different variants. As a single nozzle, complete plug-in hot runner system or hot-half.

With the slot lock single nozzle, the machine nozzle can again be used directly and without a manifold.

FDU Düse SLS
FDU Düse SLS
